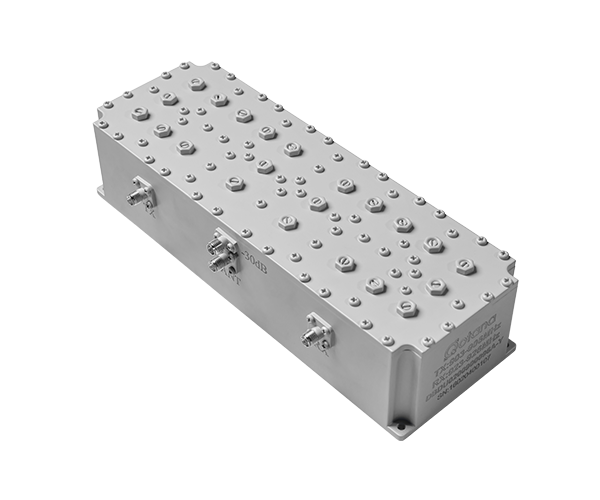

Filters

QTBF101D

• Features

RFQ

Datasheet

TTD-TRUE TIME DELAY

QTDD101D

• Features

RFQ

Datasheet

Driver Amplifier

MM3387

• Features

RFQ

Datasheet

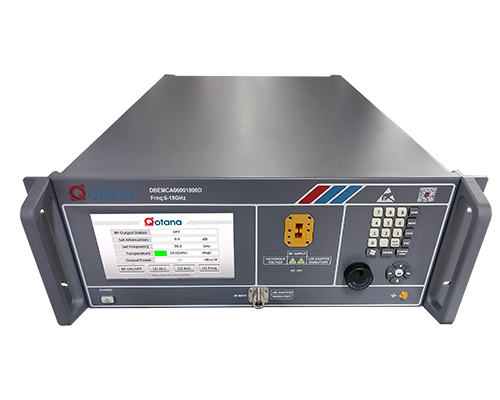

Benchtop EMC Amplifiers

DBEMCA06001800D

P/N:DBEMCA06001800D   6GHz-18GHz，140W

• Features
• Open Loop/Closed Loop Working Mode Switching
• The Gain/Output Power Can Be Adjusted
• Local/Remote Control Switching
• Protection Function: a) RF Input Power Overload Protection; b) RF Output Mismatch Protection; c) Current Overload Protection; d) Over-Temperature Protection; e) Air-Cooling Abnormal Protection

RFQ

Datasheet

Benchtop EMC Amplifiers

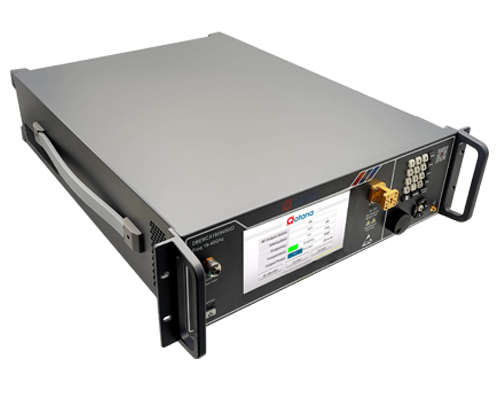

DBEMCA26004000B

P/N:DBEMCA26004000B - 26GHz-40GHz,180W

• Features
• Frequency Range 26GHz-40GHz
• Gain 60dB
• Psat 52.5dBm
• Equipped with Multiple Intelligent Protection Features

RFQ

Datasheet

Power Amplifiers (DC Powered)

DBPA5300020100A

0.03-1GHz,200W

• Features
• Frequency Range: 0.03-1GHz
• Small Signal Gain：55dB
• Saturated Output Power：53dBm
• Gain Variation Over Temperature：±2dB

RFQ

Datasheet

Power Amplifiers (DC Powered)

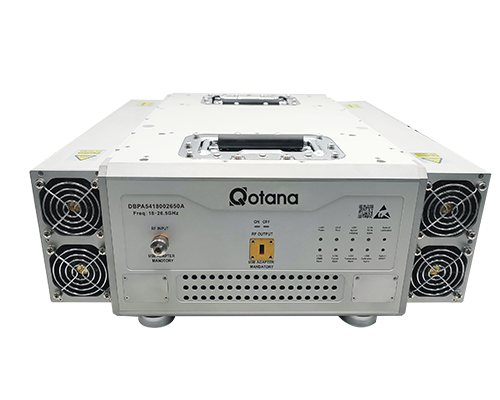

DBPA5418002650A

K-band Power Amplifier 18-26.5GHz,200W

• Features
• Frequency Range: 18-26.5GHz
• Small Signal Gain：60dB
• Saturated Output Power：53dBm
• Gain Variation Over Temperature：±3dB
• Supports Liquid Cooling

RFQ

Datasheet

PIN Switches

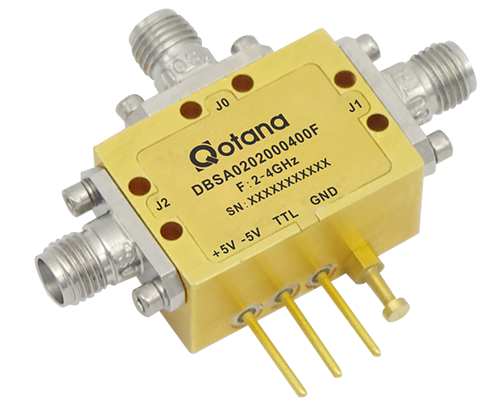

DBSA0202000400F

PIN Switch 2-4GHz/SP2T

• Features
• Frequency Range: 2-4GHz
• Insertion Loss：1dB
• Isolation：85dB
• Switching Speed：100ns

RFQ

Datasheet

Low Noise Amplifiers (DC Powered)

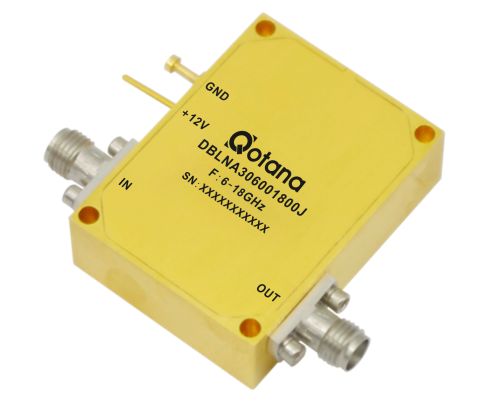

DBLNA306001800J

Low Noise Driver Amplifier 6-18GHz，+28 dBm

• Features
• Frequency Range: 6-18GHz
• Gain: 39 dB Typical
• Noise Figure: 2.2 dB Typical
• P1dB Output Power: +28 dBm Typical

RFQ

Datasheet

Power Amplifiers (DC Powered)

DBPA4826504000A

Power Amplifier 26.5-40GHz，79.5W

• Features
• Frequency Range 26.5-40GHz
• Gain: 55dB Typical
• Saturated Output Power 49dBm Typical
• Gain Variation Over Temperature ±3dB

RFQ

Datasheet

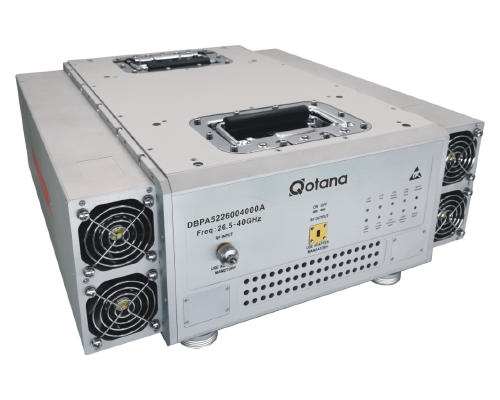

Power Amplifiers (DC Powered)

DBPA5226004000A

Solid State Power Amplifier With Air Cooling 26.5-40GHz

• Features
• Frequency Range 26.5-40GHz
• Small Signal Gain 60dB Typical
• Output Saturation Power 52dBm Typical
• Power Added Efficiency (PAE) 10%

RFQ

Datasheet

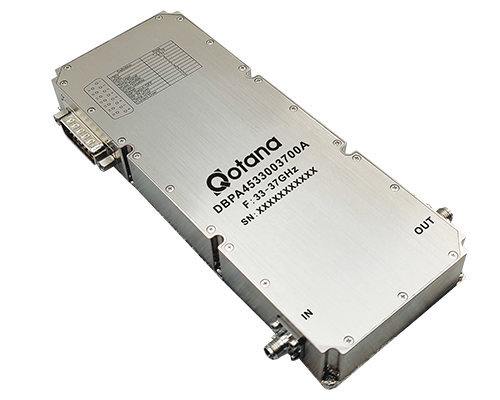

Power Amplifiers (DC Powered)

DBPA4533003700A

Wide Band Power Amplifier 33-37GHz，31.5W

• Features
• Frequency Range 33-37GHz
• Gain: 55dB Typical
• P1dB Output Power 42dBm Typical
• Saturated Output Power 45dBm Typical

RFQ

Datasheet

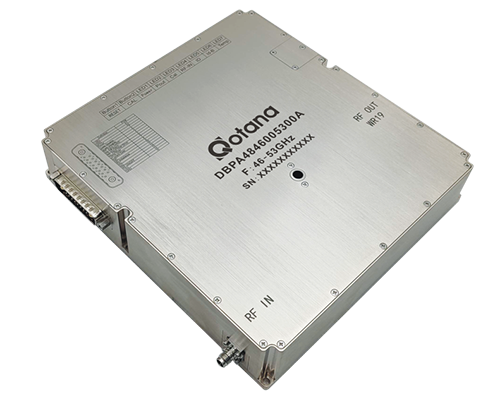

Power Amplifiers (DC Powered)

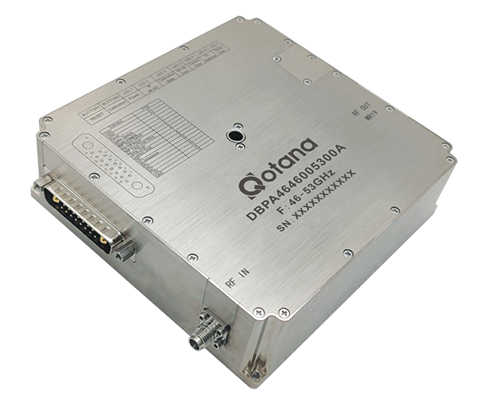

DBPA4646005300A

Power Amplifier 46-53GHz，45W

• Features
• Frequency Range 46-53GHz
• Small Signal Gain 52dB
• Output Saturation Power 46.5dBm
• Output 1dB Compression Point 43dBm

RFQ

Datasheet

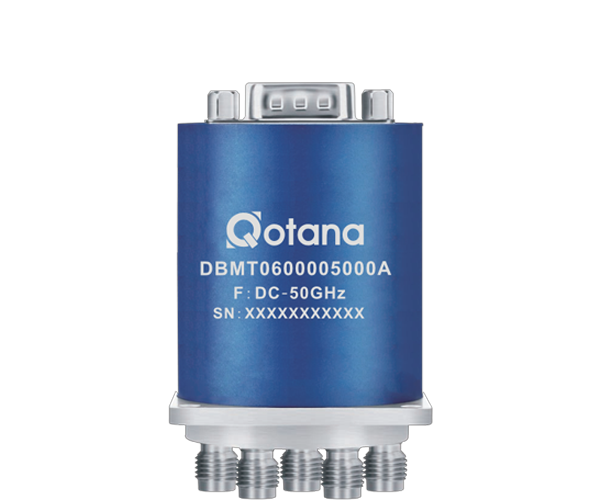

Electromechanical Switches

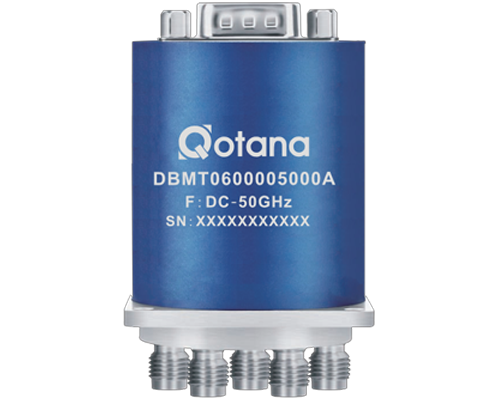

DBMT0600005000A

Electromechanical Switch DC-50GHz，SP6T

• Features
• Frequency Range:DC-50GHz
• Insertion Loss:1.2dB Max
• Voltage:12V
• Isolation: 50dB Min

RFQ

Datasheet

Power Amplifiers (DC Powered)

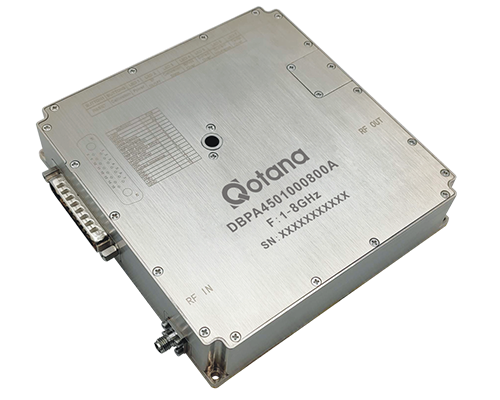

DBPA4501000800A

Solid State Power Amplifier 1-8GHz，40W

• Features
• Frequency Range:1-8GHz
• Gain:54dB Typical
• Psat:42dBm Typical
• P1dB:43dBm Typical

RFQ

Datasheet

Power Amplifiers (DC Powered)

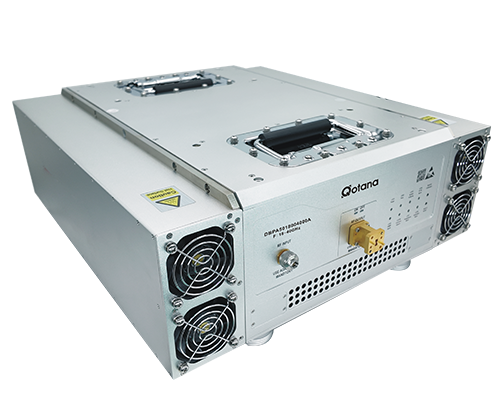

DBPA5018004000A

Solid State Power Amplifier 18-40GHz，100W

• Features
• Frequency Range:18-40GHz
• Gain:65dB Typical
• Psat:50dBm Typical
• P1dB:46dBm Typical

RFQ

Datasheet

Power Amplifiers (DC Powered)

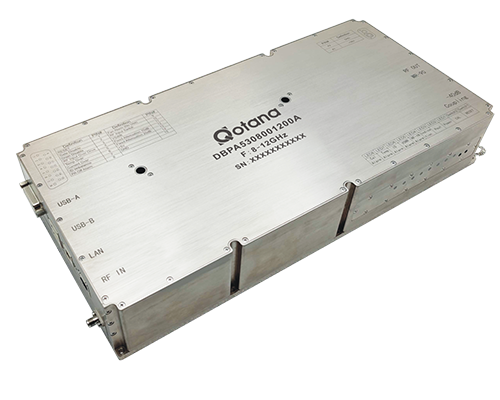

DBPA5308001200A

200W Wide Band Solid State Power Amplifier 8~12GHz

• Features
• Frequency Range:8~12GHz
• Gain:63dB Typical
• Psat:53dBm Typical
• P1dB:47dBm Typical

RFQ

Datasheet

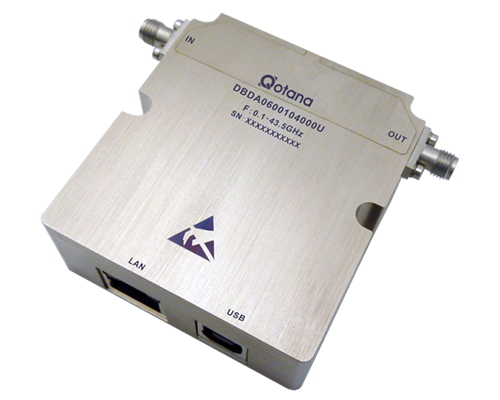

USB/LAN Control Attenuators

DBDA0600104000U

USB/LAN Control Attenuators 0.1–43.5GHz

• Features
• Frequency Range: 0.1-43.5GHz
• Attenuation Range: 63dB
• Control Step Size 1dB
• USB Controlled and Powered

RFQ

Datasheet

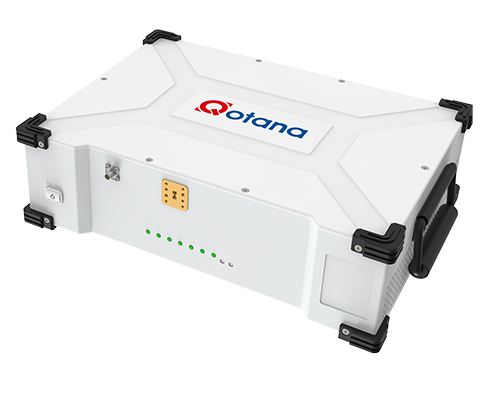

Power Amplifiers (AC Powered)

DBACPA18004000B

Wide Band Solid State Power Amplifier AC 110V/220V 18GHz~40GHz

• Features
• Frequency Range: 18-40GHz
• Gain: 49dB
• Output power 42dBm
• High P1dB: 39 dBm

RFQ

Datasheet

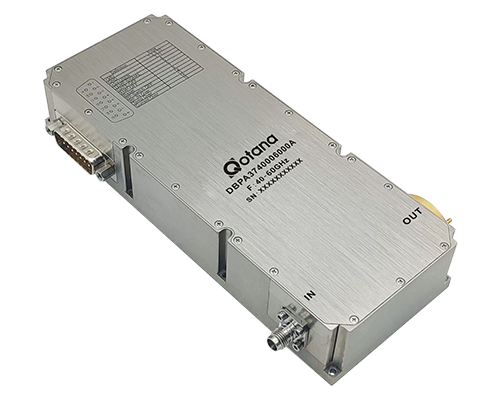

Power Amplifiers (DC Powered)

DBPA3740006000A

40-60GHz Wide Band Power Amplifier

• Features
• Frequency Range: 40-60GHz
• Gain: 45dB
• Output power +37dBm
• High P1dB: +33 dBm Full Band

RFQ

Datasheet
